RHIF RHIF: DSC-AMP Cat5e UTP Lan Cable
Deunydd Arweinydd: BC / CCS / CCA / TC / CU / CCAG
Math: Cat 5
Math yr Arweinydd: Solid
Ardystiad: ISO, RoHS,
Brand: Cable Cyfathrebu UTP Cat5e UL Rhestredig
Nod masnach: ELESUN
Origin: Cable LAN UTP Cat5e, Tsieina
Cais: Ceblau Cyfathrebu Lleol, Cable cyfechelog, cebl LAN, cebl ffibr optig, cebl pellter hir pellter, cebl RF
Clawr Deunydd: PVC
Siâp Deunydd: Rownd Wire
Deunydd Craidd Wire: Wire Copr noeth
Model: Cable Cyfathrebu UTP Cat5e UL Rhestredig
AMP LAN Cable 15 Pair UTP Cat5e: 0.51mmcca, Cu
Manyleb: AMP Lan Cable 15 Pair UTP Cat5e
Cat5e UTP Lan Cable
UTP Cat5e, UTP Cat5e, FTP Cat5e, SFTP Cat5e, Lan Cable, Network Cable
Awgrymiadau: Gallwn sicrhau bod y pas cebl PRAWF FFLIW 100% ar gyfer dargludydd CU, gydag uchel
perfformiad yn eich ateb Ceblau, neu'ch projec.
1. Ardystiad: CE. Rhestrwyd ROHS, REACH, ISO
2. Cydymffurfio: Gwiriodd ETL ANSI TIA / EIA568-2, ISO / IEC 11801. Cydymffurfio RoHS.
3.Application: 100Base-TX, 100VG-AnyLan, 1000Base-T, ATM, Amgylchedd Swnllyd
4. Noder: 250MPS 250MMZ 550MHz ATM 155MBPS, 100Pps TPDDI, Ethernet Cyflym ac ati
Adeiladu Cable Network 5 Cat5e: UTP Cat5e Cable
Eitem | Arweinydd | Nifer y Parau | Tarian | Drain Wire | OD |
Cebl Cat5e UTP | 0.51mm BC / CCA | 4 | Non | Non | Siaced 5.1mm ROHS, UV, LSZH, UL, Cyrraedd |
Cebl Cat5e FTP | 0.51mm BC / CCA | 4 | Ffoil Alwminiwm | Ydw | 5.8mm ROHS, UV, LSZH, UL, Cyrraedd |

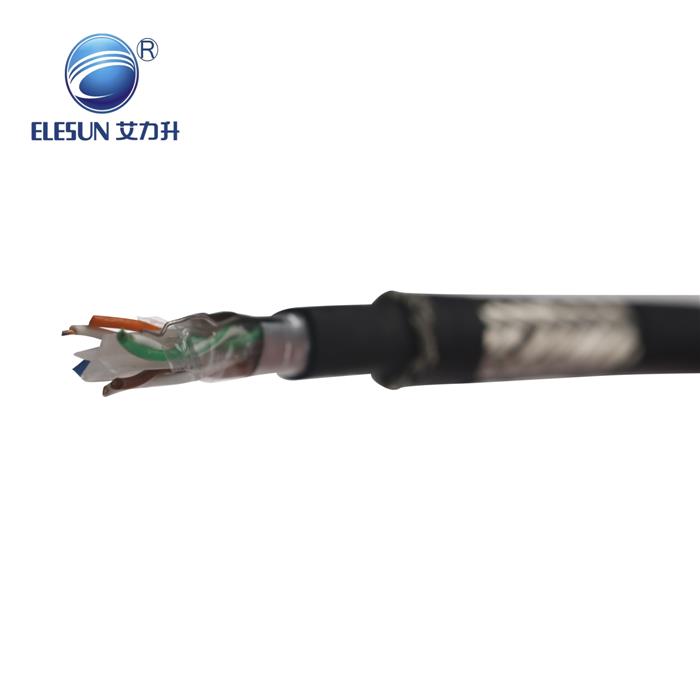

Cable Cat5e SFTP | 0.51mm BC / CCA | 4 | Ffoil Alwminiwm + Braiding Alloy | Ydw | 6.2mmJacket ROHS, UV, LSZH, UL, Cyrraedd |
Cat5e UTP Cebl Awyr Agored | 0.51mm BC / CCA | 4 | Non | Non | Siaced 6.2mm ROHS, UV, LSZH, UL, Cyrraedd |
| Cat5e FTP Cebl Cennad | 0.51mm BC / CCA | 4 | Ffoil Alwminiwm | Ydw | 6.0mm JacketROHS, UV, LSZH, UL, Cyrraedd |
Perfformiad Technegol Cebl U5 Cat5e (100m), UTP Cat5e Cable
Amlder MHz | RL ≥dB | Gwanhau ≤dB / 100m | BBB / 100m NESAF | CAM DELAY≤s | ELFEXT BdB / 100m | PS XTdB / 100m NESAF | PS ELFEXT ≥dB / 100m |
| 1 | 20.0 | 2.0 | 65.3 | 570 | 63.8 | 62.3 | 60.8 |
| 4 | 23.0 | 4.1 | 56.3 | 552 | 51.7 | 53.3 | 48.8 |
| 8 | 24.5 | 5.8 | 51.8 | 546.73 | 45.7 | 48.8 | 42.7 |
| 10 | 25.0 | 6.5 | 50.3 | 545.38 | 43.8 | 47.3 | 40.8 |
| 16 | 25.0 | 8.2 | 47.3 | 543 | 39.7 | 44.2 | 36.7 |
| 20 | 25.0 | 9.3 | 48.5 | 542.05 | 37.7 | 42.8 | 34.7 |
| 25 | 24.3 | 10.4 | 44.3 | 541.2 | 35.8 | 41.3 | 32.8 |
| 31.25 | 23.6 | 11.6 | 42.9 | 540.44 | 33.9 | 39.9 | 30.9 |
| 62.5 | 21.5 | 17.0 | 38.4 | 538.55 | 27.8 | 35.4 | 24.8 |
| 100 | 20.1 | 22.0 | 35.3 | 537.6 | 23.8 | 32.3 | 20.8 |
Ceisiadau: Ca5TP UTP Cat5e, UTP Cat5e Cable
1. Prosiect Ceblau Rhwydwaith Cyfrifiadurol.
2. Cyfathrebu Rhwydwaith Band Eang.
3. Rhwydwaith ISDN Digidol a Rhwydwaith 155Mbps ATM
4.Ethernet Network
5.Audio a Throsglwyddo Data
Pacio: 2000m / drwm pren neu 3000m / drwm pren, mae croeso hefyd i ofyniad y Cwsmer
